Case Studies · Agriculture

Oxygen Nanobubbles in Agriculture

Tests showed stronger root development and higher crop yields with oxygen nanobubble irrigation, including ~3× root density in Korean melon after two weeks.

CASE 01

Early Root Establishment & Density

In a Korean melon trial, root development and early establishment improved; root density was ~3× the groundwater comparison after two weeks.

Root development comparison between groundwater and oxygen nanobubble irrigation
Root Density ~3× Observed
Comparison after two weeks of oxygen nanobubble irrigation
Crop
Korean melon
Cultivation
Soil culture (pot)
Test Condition
Oxygen nanobubble irrigation
Comparison
Groundwater irrigation
Measurement
2 weeks after irrigation began
Evaluation
Root density and early establishment
Early Establishment 45%+ improvement
Root Density ~3×
Observed After 2 weeks

※ Results are from the stated cultivation conditions and may vary by environment.

CASE 02

Pepper Yield by Variety

Five pepper varieties were compared at DO 15–20 ppm versus groundwater at DO 7–8 ppm.

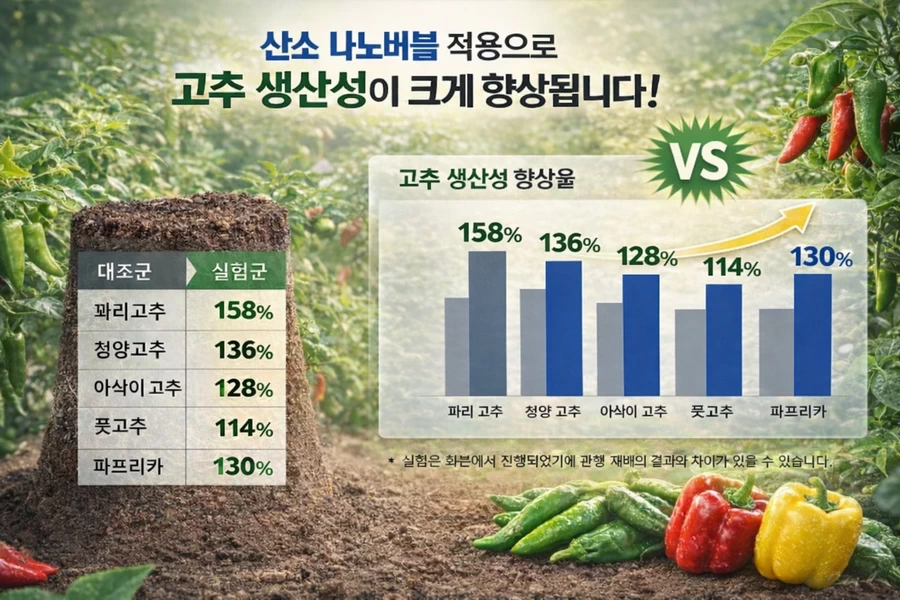

Pepper yield comparison with oxygen nanobubble irrigation
Yield 14~58% increase
Oxygen nanobubble water vs. groundwater irrigation
Crop
Shishito-type pepper · Cheongyang pepper · crisp pepper · green pepper · bell pepper
Test Period
2017.05.14 ~ 2017.07.12
Cultivation
Soil culture (pot)
Test Condition
Oxygen nanobubble water (DO 15–20 ppm)
Comparison
Groundwater (DO 7–8 ppm)
Evaluation
Cumulative yield
Yield 14–58% increase
Highest Increase Shishito-type pepper · 58%

※ Results may vary with variety, soil, irrigation, and cultivation conditions.

CASE 03

Yield Changes in Fruiting Vegetables

Across five fruiting vegetables, cumulative yield rose 7–38% versus groundwater; zucchini showed the largest increase.

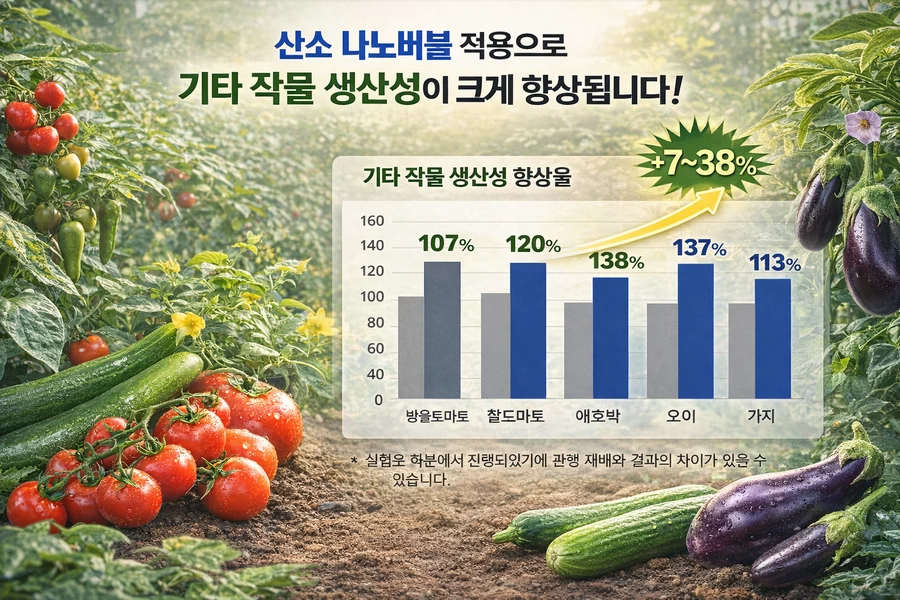

Fruiting vegetable yield comparison with oxygen nanobubble irrigation
Yield 7~38% increase
Compared with groundwater at the same irrigation volume
Crops
Cherry tomato · tomato · zucchini · cucumber · eggplant
Test Period
2017.05.14 ~ 2017.07.12
Cultivation
Soil culture (pot)
Test Condition
Oxygen nanobubble water (DO 15–20 ppm)
Comparison
Groundwater (DO 7–8 ppm)
Evaluation
Cumulative yield
Yield 7–38% increase
Highest Increase Zucchini · 38%

※ Results may vary with cultivation conditions and environment.

CASE 04

Strawberry Yield & Quality

At a 3,300 m² strawberry farm, yield increased 15%+ and the share of top-grade fruit rose.

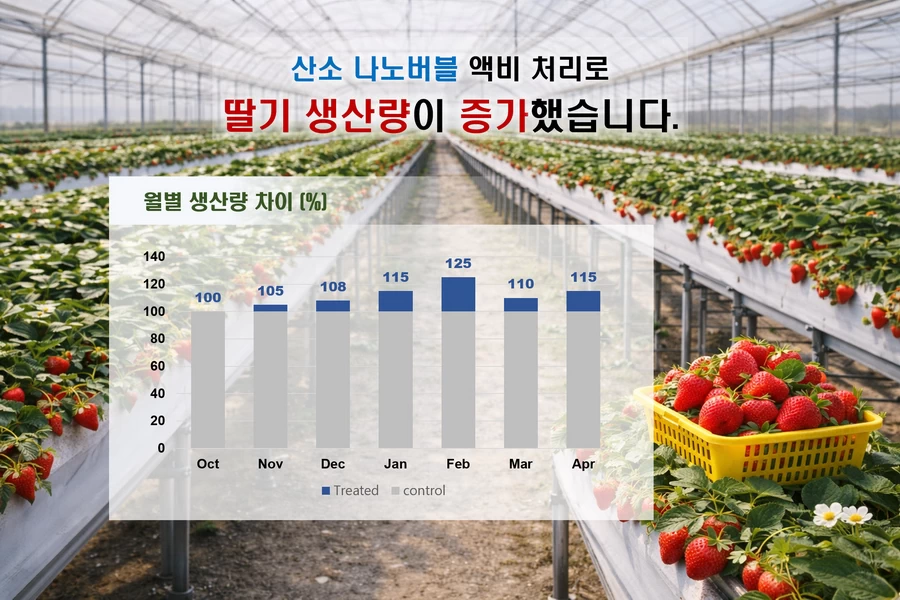

Strawberry yield and quality comparison before and after oxygen nanobubble irrigation
Yield 15%+ increase
Result from a 3,300 m² raised-bed farm
Variety
Seolhyang
Test Period
2018.09.10 ~ 2019.04.15
Cultivation
Raised-bed cultivation (3,300 m²)
Test Condition
Oxygen nanobubble irrigation
Comparison
Groundwater irrigation
Evaluation
Yield and fruit grade
Yield 15%+ increase
Fruit Quality Higher share of top-grade fruit

※ Results were measured under the specific conditions of this farm.

CASE 05

Rose Growth & Market Grade

At a 3,300 m² rose farm, weak plants recovered and top-grade cut-flower share increased.

Rose growth recovery and grade comparison after oxygen nanobubble irrigation
Growth Recovery & Market Grade Change Observed
Before/after oxygen nanobubble application
Crop
Rose
Test Period
2017.04.30 ~ 2017.07.10
Cultivation
Hydroponic cultivation (3,300 m²)
Test Condition
Oxygen nanobubble irrigation
Evaluation
Growth condition and cut-flower grade
Top-Grade Share 50~70%
Growth Recovery observed in weak plants

※ Results may vary with cultivation conditions.
